Description:

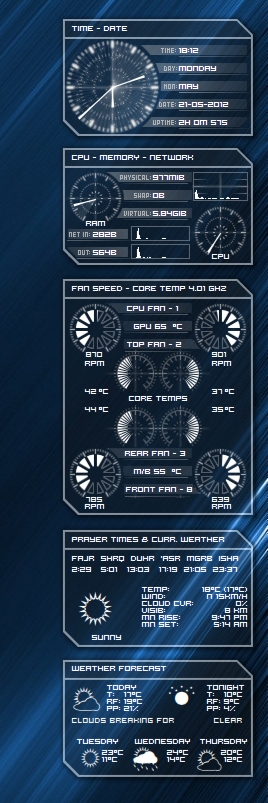

Futuristic Conky V2.2

Conky based on Future Conky 2.1 by hfcf.

To install just move or copy the ".Conky" hidden folder to you user folder.

Go to
www.accuweather.com
type in your location and press enter. If your location is found and you can see a
forecast, copy and keep the web address somewhere.

Put the hidden folder ".Conky" in your user folder!

Don't forget to install the fonts!!!

Open the script ".Conky/future_conky/accwueather/accuw_script" with your favourite text editor and replace my location's address at the
"adress=" with yours (taken from www.accuweather.com).

To put conky to start with the system go to "startup applications" and add in the "command" the file ".Conky/future_conky/start_conky.sh"

Used Scripts further modified by me:

Multi Rings (Based on "conky_orange" by SLK)

"RINGS with SECTORS" by wlourf

Accuweather Script taken from "TeoBigusGeekus_Conky_Weather_Scripts_12-5-12"

hwmon arguements for core temp, GPU temp mothermoard temp and fan speeds will need to be adjusted according to your setup. (install and run sensors )

For Islamic prayer times install itools and change you location in the config file.

Enjoy!!!

pls see an alternative newer versions but with some features removed hence left this intact.
http://gnome-look.org/content/show.php?content=151440
Last changelog:

27/5/12 - removed duplicate line (71) thus correctly realigning. Thanks to leodelacruz


Ratings & Comments

15 Comments

NightShade56

Does this work on laptops?

abuyahya

it depends on your setup, and kernal. It should work but not 'out of the box' will need to be tweaked by yourself

kgullikson

I am not sure how to set up the sensors correctly. You mention that I have to adjust hwmon by running sensors but I am not sure what you mean by that. I get the following error when I try to run: kgullikson@HAL9000 ~/.Conky/future_conky $ sh start_conky.sh kgullikson@HAL9000 ~/.Conky/future_conky $ Conky: temperature_unit: incorrect argument Conky: /home/kgullikson/.Conky/future_conky/config/conkyrc1: 23: config file error Conky: can't open '/sys/class/hwmon/hwmon2/temp1_input': No such file or directory please check your device or remove this var from Conky Conky: Error destroying thread Conky: Error destroying thread Conky: Error destroying thread Conky: Error destroying thread Conky: Error destroying thread ***** Imlib2 Developer Warning ***** : This program is calling the Imlib call: imlib_context_free(); With the parameter: context being NULL. Please fix your program. Thanks for the help (and the conky config if I can get it working!)

abuyahya

1. install and sensors. ( if you on a debian system like ubuntu or mint linux then type the following in to terminal . it will ask you for your password) sudo apt-get install lm-sensors 2. configure sensors by typing in the terminal sudo sensors-detect answering Yes (default) to all questions, even that last one that defaults to No 3. restart the terminal and run sensors by typing sensors then post that information here. sensors 4. check you have the following hwmon directories /sys/class/hwmon/hwmon0 /sys/class/hwmon/hwmon1 /sys/class/hwmon/hwmon2 you can get an indication of the files within those directories and then the 'device' sub-folder are what needs to be used. look within hwmon2/device and see if there is a temp 1 or temp 2 or GPU temp etc.

kgullikson

Okay I did those steps. Here is the output of sensors: coretemp-isa-0000 Adapter: ISA adapter Core 0: +61.0°C (high = +80.0°C, crit = +100.0°C) Core 1: +61.0°C (high = +80.0°C, crit = +100.0°C) Core 2: +62.0°C (high = +80.0°C, crit = +100.0°C) Core 3: +61.0°C (high = +80.0°C, crit = +100.0°C) atk0110-acpi-0 Adapter: ACPI interface Vcore Voltage: +0.93 V (min = +0.80 V, max = +1.60 V) +3.3V Voltage: +3.33 V (min = +2.97 V, max = +3.63 V) +5V Voltage: +5.14 V (min = +4.50 V, max = +5.50 V) +12V Voltage: +12.31 V (min = +10.20 V, max = +13.80 V) CPU Fan Speed: 1795 RPM (min = 600 RPM) Chassis1 Fan Speed: 0 RPM (min = 600 RPM) Chassis2 Fan Speed: 1214 RPM (min = 600 RPM) NB Fan Speed: 1180 RPM (min = 600 RPM) Power Fan Speed: 0 RPM (min = 0 RPM) CPU Temperature: +47.0°C (high = +60.0°C, crit = +95.0°C) MB Temperature: +38.0°C (high = +45.0°C, crit = +75.0°C) NB Temperature: +52.5°C (high = +60.0°C, crit = +95.0°C) I have an hwmon0 and hwmon1 directory, but no hwmon2 directory.

abuyahya

hwmon 2 temp 1 for me is the graphics card do you have a separate graphics card or an integrated one. open the following file in a text editor (such as gedit or kate). /.Conky/future_conky/config/conkyrc1 on line 87 delete the last bit from 'GPU $.......°C' till the end of the line (once you get it working you could output some thing else here to use up the space. such as the M/B or N/B temps) ${voffset 11}${goto 77}GPU ${hwmon 2 temp 1} °C then try to run the conky in terminal with conky -c $HOME/.Conky/future_conky/config/conkyrc1 & If it still doesn't work then look in /sys/class/hwmon/hwmon0/device you should have some files referring to your Core temps such as Core0 , Core1, Core2, Core3 or temp1, temp2, temp3, temp4 or something else mine were temp2, temp3, temp4, temp5 and that's what Futuristic Conky is based on. open following in text editor /home/ubu1/.Conky/future_conky/scripts/sector_rings.lua and change the arguments for the hwmon0 "temp x" for whatever is in your system e.g name="hwmon 0", arg="temp 2", <---change this line max=90, repeat for all the cores - hwmon 0 . save the file and run conky -c $HOME/.Conky/future_conky/config/conkyrc1 & if still not working repeat above for hwmon 1 which is your motherboard. based on the sensors out put possible names will be CPU Fan Speed Chassis1 Fan Speed (was 0 so might not be connected to a fan) Chassis2 Fan Speed NB Fan Speed Power Fan Speed (also 0) CPU Temperature MB Temperature NB Temperature so double check names in hwmon1/device folder change accordings arg in the lua file as before. you may also need to change line 94 in the conkyrc1 file which reads ${voffset 11}${goto 77}M/B ${hwmon 1 temp 3} °C let me know how it goes.

kgullikson

Thanks for the help! I got it mostly working. I had to play with the vertical offsets to get things to look right. Maybe that is because I didn't install the fonts? I am not sure what you mean by that. The weather formatting looks really funky, but I don't really care about that anyways so I will probably just lop it off.

abuyahya

The fonts which include weather symbols are both installed by opening up the font file in file manager, and then click on install font at right lower corner. If you not using the fonts then alignment will be out and weather symbols will be absent.

leodelacruz

Man, thank you... perfect work! but in line 71 of conkyrc1 this line ${voffset 6}${goto 15}TIME - DATE is repeated

abuyahya

Have corrected. Many thanks for the feed back.

leodelacruz

am for this ;)

darek

thank you for this conky and some inspirations for me, it's a great job!!! and conkyweather nice well. I'm under Ubuntu 12.04 and it works well! Thanks yet a lot!

abuyahya

I'm glad you like it. thanks for the feed back.

polobear

Hey, I am new to Ubuntu, I am using Gnome 3 on Ubuntu 12.04 LTS, I am trying to install your Conky but I have no results, I don't have a clue what folder you are on about when you simply say "user folder", help me.

abuyahya

I will try to help but I have only being using linux for 1 month some am relatively new. 1. install conky in a terminal with following command sudo apt-get install conky-all it will ask you for root password. 2. extract the zip (futuristic conky) in the home directory such that the " .Conky " folder is a direct subdirectory of the home directory. 3. you can then run the start_conky.sh script but first change its permissions so it is executable like a program. can even add a link to the start up so it launch's at boot. Or alternatively you can run from terminal with following command $ conky -c $HOME/.Conky/future_conky/config/conkyrc1 & hope that helps!
