CDE/Motif Theme with Front panel app from the CDE desktop for use with Xfce4. Tested on current
Debian sid/stable, MX, Suse leap, Xubuntu and Mint and... don't remember.
The GTK etc theme should also work without Xfce. New features:
NOTE: There is a small bug when creating a new color scheme. Please edit ~/.config/CdePanel/config
The first line should be 'currentpalettefile: Broica.dp' or similar. Will address this asap
*Added a small script as a workaround for bug on Open Suse
*Panel autoraises when mouse hits bottom of screen
*Adjust volume with mousewheel when hovering over pavucontrol icon in panel *
*Icons in app are dithered and get a cde-style bevel, icons in the panel also appear greyed
Unpack and run ./startpanel to install. Also run same executable next time to start.
If you experience any problems, let me know below. Like comment subscribe.
See also https://www.youtube.com/watch?v=8h0kNQZi1eM for more elaborate description
--------------------------------------------------------------
' HELP/README
Cdetheme 1.4.2 - 11 December 2022
Cde front panel and gtk/qt/xfce theme. Mainly meant to use with
xfce4. Logged in to an xfce session, run
./startpanel
to install the theme and start the front panel.
The cdepanel and gtk/qt themes all use older python and pyqt
versions so they won't run on most current systems. Needs a
rewrite, but for now I packaged everything in a pyinstaller
executable. This creates its own environment, with the old
dependencies installed inside. I tested it on the current Linux
Mint, MX, Debian stable and sid, Suse Leap, Fedora, Xubuntu and
Sparky, all with Xfce installed.
The scripts do rely on some external helper programs, most are
already installed on the average distribution with xfce. These
ones you also need:
imagemagick, gtk2 pixmap engine, qt5ct, qt5 gtk2 platform theme,
qt5 style plugins, gtk-launch, orage, ... and what not
Everything still needs work, but yes I thought just put out this
one that works on the newer distributions...
USAGE:
Configuration of the cdepanel app can mostly be done by right
click on the panel. Different options will be shown when clicking
on a launcher (icon), drawer, or side handle.
Apps can be added to the panel and drawers using drag and drop.
One can drag icons over from the xfce4-appfinder or whisker menu
to the panel or open drawer. But one can also drag icons from an
open drawer to the panel or vice versa, or from one position in
the panel to another.

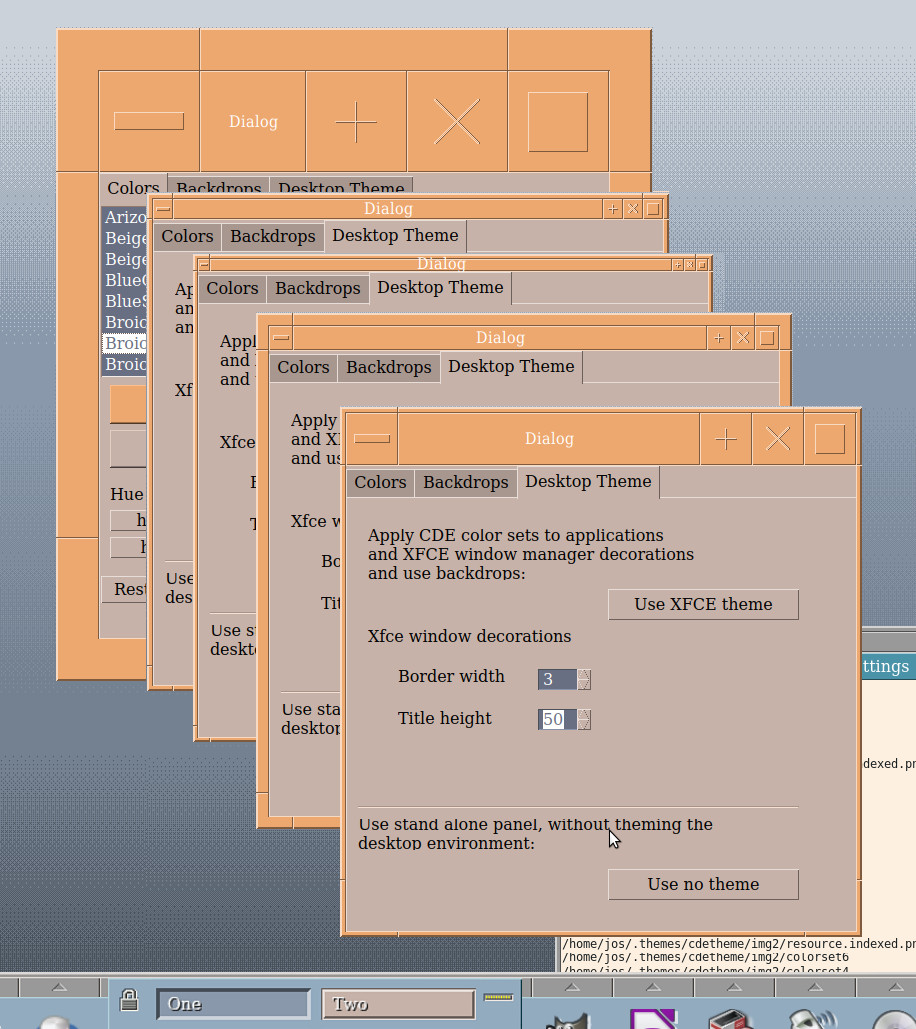

Colors, backdrops and window borders can be changed in the
'Settings' dialog (right-click panel). More advanced settings can
be made by editing the config file (see 'Advanced' tab in the
settings dialog). Edit at your own risk!
Keys and mouse on panel:
mousewheel: Switch workspace
=/-, ctrl-mousewheel: Larger/smaller size
h/H, shift-mousewheel: More/less sharpness
p/P: Cycle back/forth through color palettes
s/S: More/less saturated colors in panel
c: Pop up config dialog
r: Save layout (after moving buttons etc)
n: Toggle between 4 and 8 colors mode
esc: Close all drawers
ctrl-c: Exit program
ctrl-r: Restart
0: Resize panel to unscaled size
Mousewheel over pavucontrol icon: change speaker volume.
Mouse at bottom of the screen raises the panel window above all
others.
ADDITIONAL:
If you want to get rid of the new client side decorations windows
and draw normal Motif style window decorations always, please
sudo apt install gtk3-nocsd
and set
export GTK_CSD=0
export LD_PRELOAD=<"full path" of your libgtk3-nocsd.so.0 file>
in your .bashrc. I'm looking for a better solution for this,
but yes...
---------------------------------
Older info:

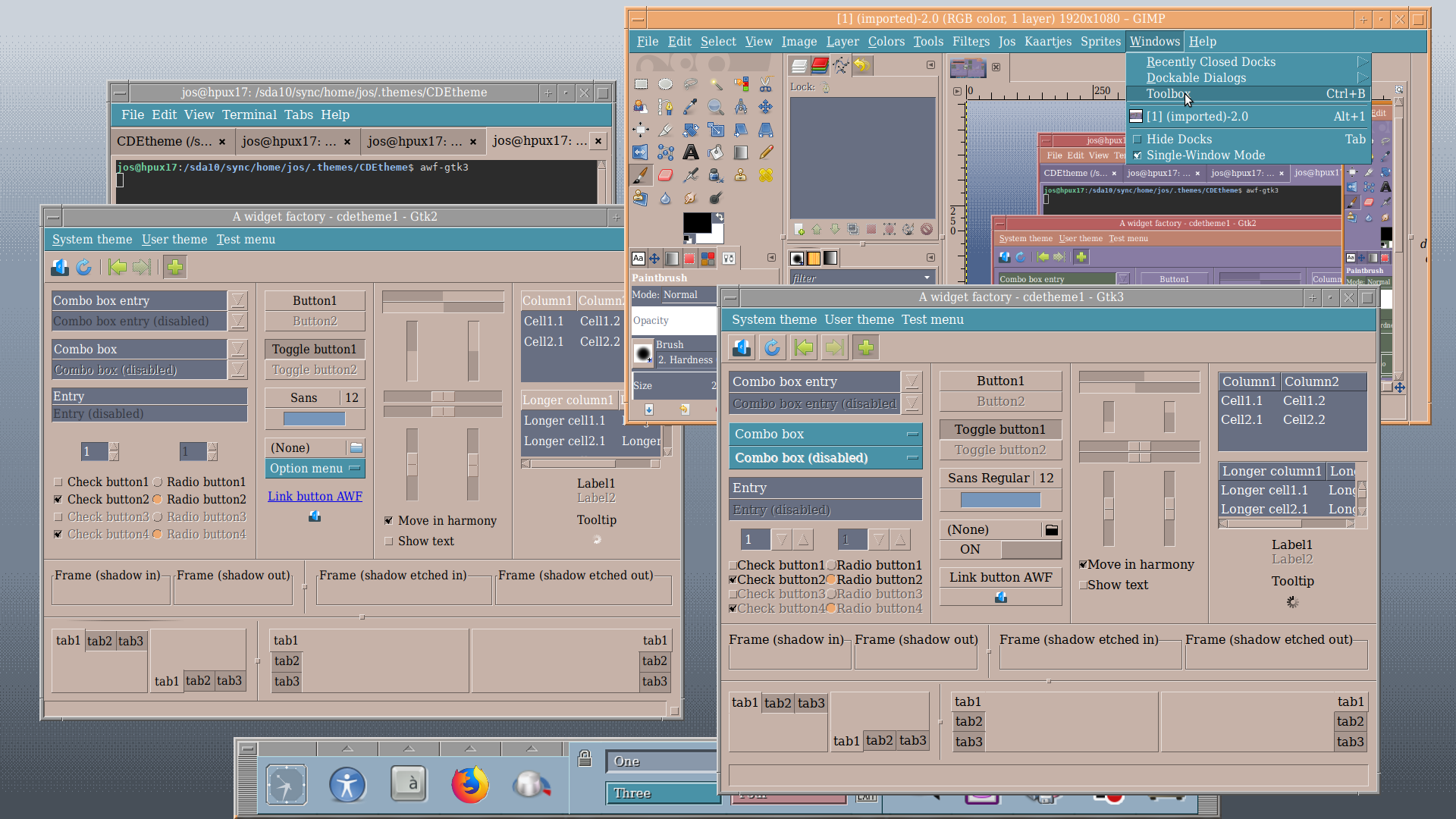

Gtk2 / Gtk3 theme mimicking CDE / Motif and Front panel app
'An elegant desktop, from a more... civilzed age.'
Latest version 1.3 : Now includes configurable XFCE window decorations. Title height and border width can be set in pixels, and the images necessary for xfwm making up the border and window buttons will be generated from that. Also the panel app and gtk/xfce theme are now combined into a single package
Unpack, and run 'cdepanel'. (Maybe do chmod u+x cdepanel first.)
Tested on Xubuntu 17.10.
To generate theme files without using the panel app, use the 'switchtheme' script.
CDE= Common Desktop Environment was (is) a colorful desktop from the '90s with a very distinct flat / boxy look.
Comes with about 40 original CDE color schemes. Script generates the gtk.css etc files. Includes the purplish 'Solaris' found in many 'cde themes' (the palette Crimson.dp) and a color scheme used on HPUnix (at least on the Hp9000 I used).
Includes theme for Xfce window decorations ala CDE/Motif
README FILE ########################################################################
CDEPANEL AND CDETHEME 1.3 / JOS@JOSVANRISWICK.COM
CDE front panel emulation with gtk and xfce theme
###################################################################################
HOW TO TEST:
Make fresh a live usb of xubuntu 17.10 and run the binary 'cdepanel'
(you may need to do 'chmod u+x cdepanel')
Use gtk/xfce theme *without* the panel app with the 'switchtheme' script, eg:
./switchtheme ../palettes/Broica.dp 8 5 18 true true true
###################################################################################
NEWS:
In this 1.3 version I added configurable XFCE window decorations. Title height
and border width can be set in pixels, and the images for borders and window
buttons will be generated from that.
Directories and are now organized a bit different. See 'TWEAK' below.
###################################################################################
REQUIREMENTS:
1) linux
2) a /tmp directory
3) python2.7
4) imagemagick convert
5) gtk2 pixmap engine
6) python and PyQt4
7) Prefarably, use XFCE4 !
It was tested on xubuntu 17.10. On ubuntu,
python and imagemagick should come installed. But if not, do:
sudo apt install imagemagick python gtk2-engines python-qt4 gtk2-engines-pixbuf
###################################################################################
INSTALLATION:
A) CDE Panel app
1) extract the zip to some place you can access
2) copy 'cdepanel' to your path, or just run it from there
(maybe you need to make it executable, do: 'chmod u+x cdepanel')
If you are using xfce4 the script will set a different CDE
backdrop to every workspace. However, not all versions of xfce4 allow
setting the backdrop from a script. So you may need to go into
SETTINGS/DESKTOP and uncheck 'Apply to all workspaces'.
The Gtk2/3 theme uses images (arrows and such). Gtk3 doesnt always display
these sharply, depending on the dpi setting or font size. If some elemens
in apps appear blurred, try modifying your custom dpi setting or font
size. (XFCE SETTINGS/APPEARANCE/FONTS)
If the 'cdepanel' binary doesnt work on your system, you need to TWEAK (see below)
B) Gtk/xfce theme *without* cde panel app
1) copy 'cdetheme' directory to ~/.themes
2) Go into xfce/settings/ appearance and window manager to pick 'cdetheme'
(or similar app in other environments)
3) use the 'switchtheme' script for picking a new color palette or set the
window height/border width
###################################################################################
USAGE:
Configuration of the cdepanel app can mostly be done by right click on the panel.
Apps can be added to the panel and drawers using drag and drop.
Keys and mouse:
mousewheel: switch workspace
=/- or ctrl-mousewheel: change size
h/H or shift-mousewheel: change sharpness/antialiasing
p/P: quick palette switch
s/S: tweak displayed saturation
c: pop up config dialog
###################################################################################
TWEAK
The file 'cdepanel' is a pyinstaller executable containing almost all
dependencies. So running that has the greatest chance of just working. The
cdepanel script will try to make an initial configuration based on what it
finds on your system. If you want to manually tweak or modify/improve the
configuration or scripts, here are some pointers:
cdetheme/: directory containting the gtk/xfce theme files, should be copied to
~/.themes A link to this directory called cdetheme1 will be created to be able
to quickly switch and affect changes when the theme has been modified
cdetheme/scripts: directory with all the python scripts
scripts/cdepanel.py: the source file of the main app. If the binary 'cdepanel'
doesnt work, try to run this one.
scripts/switchtheme: script for setting the theme (gtk/xfce), without using the
panel app
scripts/CdePanel/: the configuration directory for cdepanel. On initial run,
this is copied to your ~/.config directory.
CdePanel/layout: file that determines what is shown on the panel
CdePanel/config: some configuration options
CdePanel/cache: icon cache. If your icons look funny, empty this dir

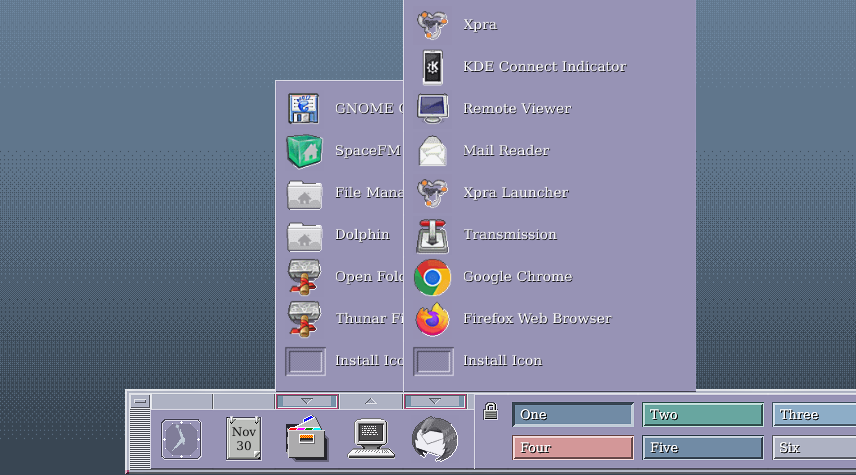

CdePanel/drawers: contains drawer files (the arrow things that pop up a list of
apps). On inital run, a set of default drawers is created.
###################################################################################
PYHON DEPENDENCIES
If you want to use the python modules instead of the 'binary' please install
the following dependencies:
sudo apt install python-dev build-essential python-sip-dev python-sip-dev libpythonqt-dev libqt4-dev libqt4-dev libqt4-dev python-qt4-dev python-qt4 python-yaml python-xdg python-pil python-pip
sudo pip install ewmh
sudo pip install colors.py
sudo pip install pyinstaller
###################################################################################
QT THEME
Hmm in xubuntu 17.10 the gtk style now doesnt seem to be applied to QT apps. To do this install
sudo add-apt-repository ppa:mati75/qt5ct
sudo apt install qt5ct
sudo apt install qt5-style-plugins
and in .bashrc set
QT_QPA_PLATFORMTHEME=qt5ct
export QT_QPA_PLATFORMTHEME=qt5ct
(one of the 2)
start qt5ct and pick 'gtk+'
So yes.. I hope you can get it to work !
